Clamp-On Ultrasonic Flow Meters: Accuracy Without Cutting the Pipe
A plant engineer who needs a flow figure on an existing line rarely has the luxury of a planned shutdown. An energy survey, a commissioning check, or a suspect reading on an ageing inline meter all want an answer this week, not after the next outage. This is the gap clamp-on ultrasonic flow meters exist to fill: strap a pair of transducers to the outside of an existing pipe and get a flow reading with no wetted parts, no pressure drop, and no cut into the pipe wall.
Clamp-on ultrasonic is genuinely remarkable when it is matched to the right pipe and fluid, and genuinely disappointing when it is not, often on the same site within the same week. The difference between the two outcomes is almost entirely down to installation rather than the meter itself. This article sets out how clamp-on ultrasonic actually works, what it needs from the pipe and fluid to give a trustworthy reading, the accuracy you can honestly expect, and when a different technology is the better answer.
How a Clamp-On Ultrasonic Flow Meter Works
Nixon supply both clamp-on and inline variants across our ultrasonic flow meter range; this article looks specifically at clamp-on, the non-invasive branch fitted to an existing pipe from the outside.

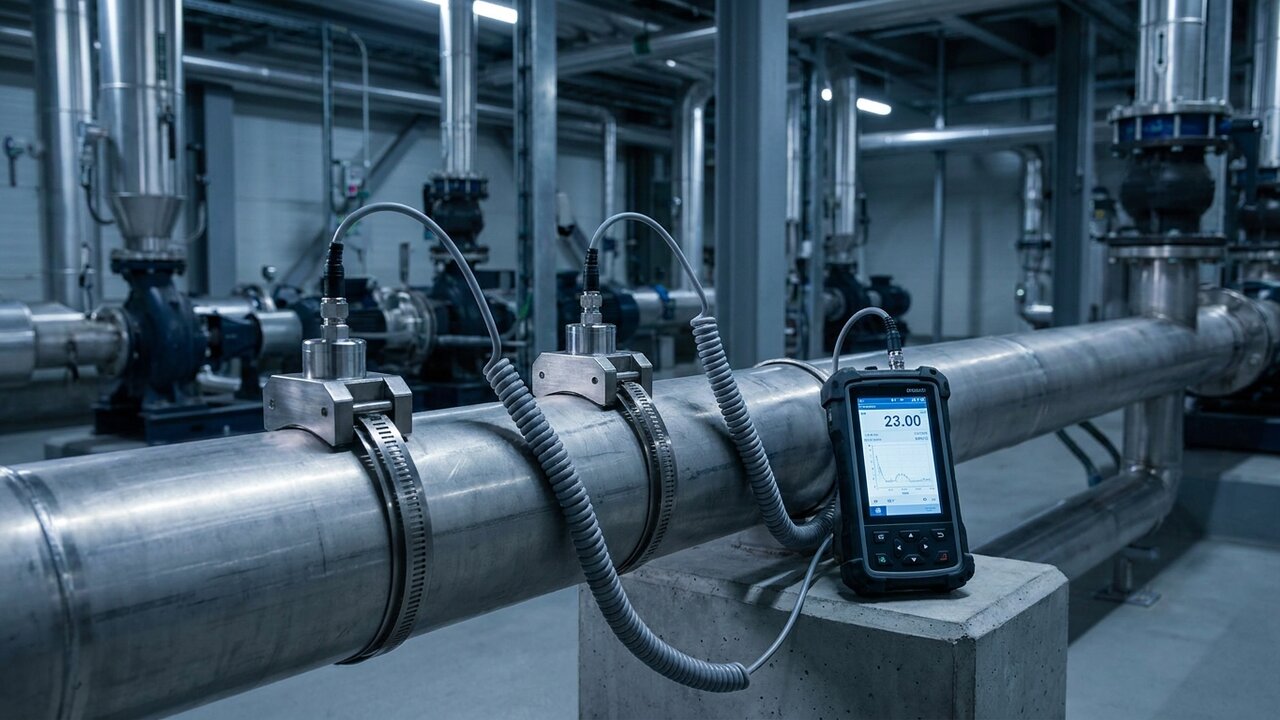

A clamp-on installation uses two transducers strapped to the pipe, mounted diagonally to the pipe axis rather than directly opposite one another. Each transducer takes it in turn to send an ultrasonic pulse diagonally through the pipe wall and the fluid to the other: one pulse travelling with the flow, one against it. The pulse travelling with the flow arrives fractionally sooner, because the moving fluid adds to or subtracts from the speed of sound through it.
That transit-time difference is proportional to average fluid velocity along the sound path. The meter's electronics measure it in microseconds, apply the pipe bore programmed into the instrument, and calculate volumetric flow. There are no wetted parts, no pressure drop, and no need to drain or cut into the line to fit one.
What a Clamp-On Meter Needs to Work Well
Clamp-on ultrasonic is unusually sensitive to installation for a technology with no moving parts: get the following right and it performs close to its potential; get one wrong and the reading can be badly out, or absent altogether.
- A full pipe, always. Air or gas pockets scatter or block the signal; a partially full pipe gives no reliable reading.
- Accurate pipe data. Outside diameter, wall thickness, material and lining all feed the calculation, and a wrong entry gives a confidently wrong answer, not an error message.
- Acoustic couplant between transducer and pipe. A dry or poorly coupled transducer is one of the commonest causes of a failed installation.
- A sound pipe wall. Heavy corrosion, scale, some linings and old cast iron scatter or attenuate the signal, sometimes enough to prevent a reading, sometimes enough to bias it silently.
- Adequate straight pipe run, typically 10 diameters upstream and 5 downstream, clear of bends, valves and pumps.
Honest Accuracy: What to Expect in Service
A well-installed clamp-on ultrasonic meter typically achieves 1 to 3 percent of reading, a useful figure for verification, energy surveys and trend monitoring, though usually somewhat worse than an inline meter of the right technology on the same duty.
The honest point spec sheets gloss over: clamp-on accuracy is installation-dependent in a way few other technologies are. Two engineers fitting the same meter to the same pipe, one meticulous about pipe data and straight run, one working to a tight schedule, can get noticeably different results from identical hardware. We cover installation shortcuts eroding accuracy, across meter types, in our guide to troubleshooting flow meter errors.
Transit Time vs Doppler: When the Liquid Is Dirty
Everything above describes transit-time ultrasonic, the variant that dominates clean-liquid clamp-on duties. It needs an acoustically clean liquid: the pulse must travel from one transducer to the other largely undisturbed, so entrained air, heavy aeration or high solids scatter the signal and can prevent a reading, or corrupt it without warning.
Doppler ultrasonic works on the opposite principle: it needs particles or bubbles in the flow to reflect sound back to the transducer, and a clean liquid gives it nothing to measure against. We have covered Doppler flow meters, how they work and where they earn their keep on slurries and aerated effluent, in a separate article rather than repeating that explanation here. The practical rule: clean liquid, reach for transit time; dirty or aerated liquid, reach for Doppler instead.
When Clamp-On Is the Right Choice
Clamp-on ultrasonic earns its place in a specific set of situations:
- Verification of an installed meter, checking a suspect reading without breaking containment or shutting the process down.
- Large pipes, where an inline meter of any technology becomes prohibitively expensive or impractical to fit.
- Temporary or survey work, using a portable unit for hours or days rather than committing to a permanent installation.
- Hygienic or hazardous lines, where breaking into the pipe carries a real cost in contamination risk, permits or downtime.
- Retrofit monitoring, adding flow visibility to an existing line for an energy survey or a leakage study without disturbing the process.
In each of these, the point of clamp-on is fitting the meter without cutting into the pipe, and 1 to 3 percent accuracy is more than enough for the decision being made.
When Clamp-On Is the Wrong Choice
Just as importantly, there are duties where we would steer a customer away from clamp-on ultrasonic, even though it would physically fit the pipe.
- Custody transfer, or any duty where money changes hands on the reading: installation-dependent accuracy is not the right basis for a commercial measurement.
- Aerated or high-solids liquids on transit time: the signal will not get through reliably; Doppler, or a different technology, is the right answer.
- Badly corroded or unknown pipework: if wall condition cannot be confirmed, neither can the meter's accuracy.
- Low-pressure gas: coupling a signal into a low-density gas is far harder than into a liquid, and clamp-on gas measurement is a specialist case, not a routine one.
- Anywhere better than 1 percent accuracy is genuinely required: an inline ultrasonic, magnetic or turbine meter will outperform a clamp-on installation on the same duty.
None of this makes clamp-on a poor technology; it is the wrong tool for a specific handful of jobs, and we would rather say so before an installation than after a disappointing result.
Portable vs Fixed Installations
Clamp-on ultrasonic meters come in two forms, and the choice affects both the installation and what you get from the data.
Portable units suit survey work measured in hours or days: strap the transducers on, log the data, then move to the next line, where battery life and logging capacity matter more than long-term durability.
Fixed installations are built for years of service: permanently mounted transducers, a weatherproof enclosure, and an output wired into the plant's monitoring system.
Many customers start with a portable survey to see whether monitoring a line is worthwhile, then move to a permanently fitted meter, often a different technology, once the data has made the case: a good outcome, not a lost sale.
Frequently Asked Questions
How does a clamp-on ultrasonic flow meter work?
Two transducers strapped to the pipe send ultrasonic pulses diagonally through the flow, one with the flow and one against it. The transit-time difference is proportional to fluid velocity, from which the meter calculates flow using the programmed pipe bore.
How accurate are clamp-on flow meters?
A well-installed clamp-on meter typically achieves 1 to 3 percent of reading. Accuracy depends heavily on installation quality, correct pipe data and wall condition.
Do clamp-on flow meters work on any pipe?
No. It needs a full pipe, a sound pipe wall free of heavy corrosion or signal-scattering linings, and adequate straight run clear of bends and valves.
Can a clamp-on meter measure dirty liquids?
Standard transit-time meters need an acoustically clean liquid; entrained air or high solids scatter the signal. Dirty or aerated liquids suit Doppler ultrasonic instead.
Do you need to shut the process down to install one?
No. Fitting the transducers to the pipe exterior needs no cutting in and no shutdown, which is why clamp-on is chosen for verification and survey work on live lines.
Getting the Installation Right
Clamp-on ultrasonic is one of the most useful tools in a flow engineer's kit when matched to the right pipe and fluid, and one of the least useful when it is not. Get the pipe data right, get the wall condition right, and it will earn its keep on verification, survey and retrofit monitoring for years. Full details of Nixon's clamp-on and inline options sit on our ultrasonic flow meter page.
Whether clamp-on is right for a line usually comes down to the pipe itself: material, condition and what is flowing inside it. If you would like a view on a specific installation, or to arrange a survey with a portable unit, the Nixon team is happy to advise.
