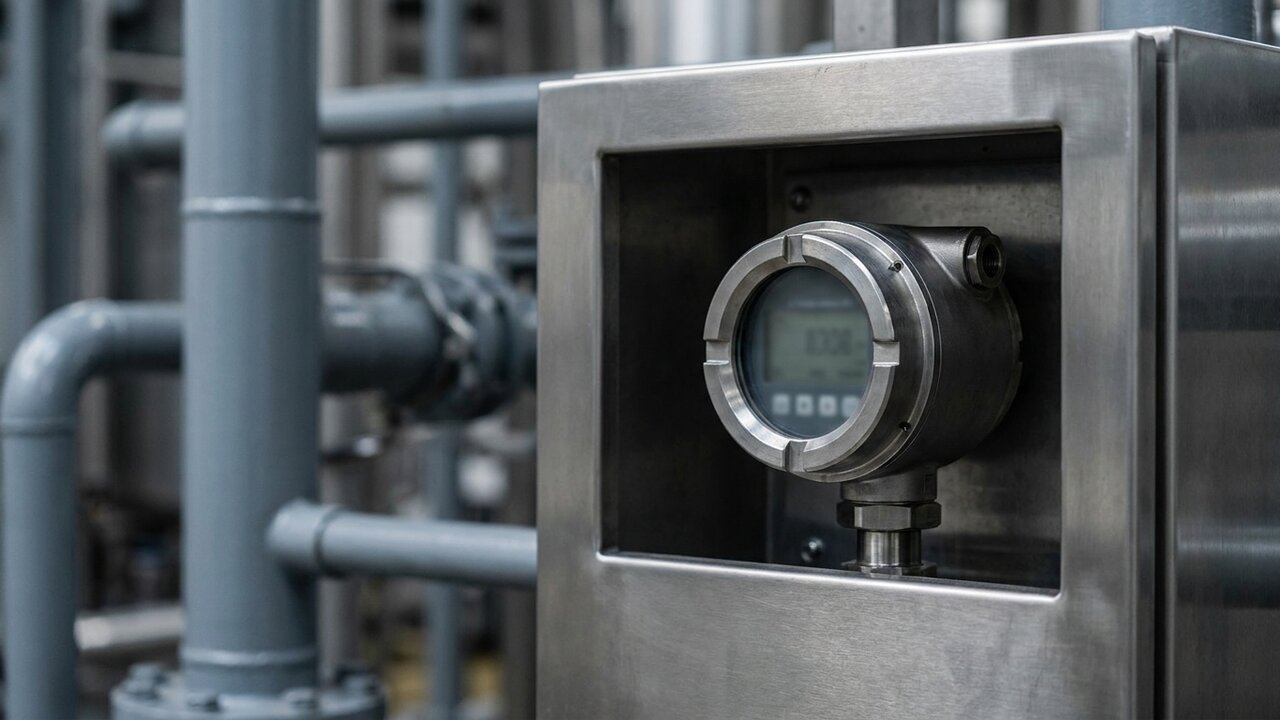

Compressed Air Flow Meters: Finding the Leaks That Cost You Money

Compressed air is, litre for litre, one of the most expensive utilities a plant runs, and one of the least measured. Ask most plant engineers how many hours the compressors ran last week and they will tell you instantly. Ask what proportion of that air reached production rather than a leak, a hose left open, or an oversized regulator, and the answer is usually a guess.

That gap, between compressor hours and productive hours, is where the money goes, and it stays invisible without a flow meter on the system. Leakage of 20 to 30 percent of generated air is commonly reported in unmanaged compressed air systems, and because compressed air is generated so inefficiently in the first place, every leaked litre was expensive long before it left the compressor house. This article sets out why compressed air costs so much, the leak arithmetic that makes a flow meter worth having, the simplest audit you can run this weekend, and an honest view of when a permanent meter earns its keep, and when it does not.

Why Compressed Air Costs So Much

Generating compressed air is a poor energy conversion by design. It is a widely quoted rule of thumb in compressed air energy audits that as little as ten percent of the electrical energy a compressor consumes ends up as useful energy at the point of use, the rest lost as heat, mostly at the compressor itself. The precise split varies with compressor type, age and condition, but the principle holds everywhere: most of what you pay for at the meter never becomes usable air, so every litre lost to a leak was generated at that same poor ratio.

The Leak Arithmetic That Sells the Meter

A single 3 mm hole in a compressed air line running at 7 bar is commonly cited in industry leak-rate tables as losing somewhere in the region of 11 litres per second of free air, continuously, whether or not production is running. Industry figures put the resulting electricity cost at a four-figure sum per year at typical UK tariffs; the exact number on your site depends on your compressor's specific power and your electricity tariff, so treat this as an order of magnitude and run the arithmetic against your own numbers rather than ours. Multiply that single hole by the dozen or so leaks a typical unmanaged system accumulates, at hose connections, quick couplers and worn seals, and the 20 to 30 percent leakage figure quoted earlier stops looking exaggerated. A compressed air flow meter is what turns that abstract percentage into a number you can see and act on.

The Night-Shift Test: The Simplest Leak Audit There Is

The single most useful thing a compressed air flow meter tells you costs nothing extra to obtain: what it reads when production has stopped. On a clean shutdown, say 3 a.m. on a Sunday with no machines running, whatever flow the meter still shows is, for practical purposes, leakage, plus anything deliberately left running such as a purge or a control panel. Log that baseline figure and you have a genuine leak rate without a survey team, an ultrasonic gun, or a consultant's report. Watching how that baseline drifts month to month is one of the simplest maintenance indicators a plant can have: a rising night-time flow means new leaks are appearing faster than existing ones are being fixed.

Why Compressed Air Needs Mass Flow, Not Just Volume

Air is compressible, so a volume reading on its own tells you very little. A cubic metre of air at 7 bar contains roughly eight times the mass of a cubic metre of the same air at atmospheric pressure, so a flow figure quoted without a stated pressure and temperature is close to meaningless for comparing, billing or trending over time. The honest unit is standard, or normal, volume: normal litres per minute, or Nm3 per hour, referenced to a fixed pressure and temperature so a reading taken today means the same thing as one taken next year.

How a Thermal Mass Flow Meter Works

Thermal mass flow meters are the usual first choice for measuring dry compressed air because they measure mass flow directly, sidestepping the compressibility problem altogether. A heated sensing element sits in the airstream; moving air removes heat from it in proportion to mass flow, and the meter's electronics measure the power needed to hold the element at a constant temperature above the air, converting that directly into a mass flow rate. It is a robust, well proven principle with no moving parts, though sensitive to condensation and oil carry-over, either of which can coat the sensing element and shift its calibration.

Choosing the Right Technology

No single technology suits every compressed air installation; the right answer depends on how clean and stable the air is by the time it reaches the meter.

Thermal Mass

Direct mass reading, wide turndown and a simple digital output make thermal mass the default for dry mains and branch metering. Moisture and oil carry-over are the main threat to accuracy, so fit these downstream of a working dryer.

Turbine

For clean, dry air at stable pressure and temperature, a turbine meter still earns its place, with higher accuracy on clean dry air at stable conditions than most alternatives, and a simple, reliable pulse output. Nixon's NTG Gas Turbine, an internal redesign of our NT industrial turbine for gas service, sits within our wider turbine flow meter range alongside the liquid duties the NT was originally built for.

Vortex

Vortex meters are a robust choice for compressed air mains, with no moving parts to wear and reasonable tolerance of an imperfect installation, but mind the low-flow cut-off: below a certain velocity a vortex meter stops producing a usable signal, which matters where flow swings widely between production and idle periods.

Insertion Probes

For large-diameter mains where a full-bore meter would be costly to fit, an insertion probe through a single tapping is often the pragmatic answer, trading a little accuracy for a much simpler installation.

When Not to Spend on a Meter

This is the part most suppliers skip. A small workshop running a single compressor on a short pipe run will often get more value from an ultrasonic leak detection gun and an hour spent walking the system at the weekend than from a permanently installed flow meter. Permanent metering earns its cost on larger, multi-branch systems, where leaks are hard to locate by ear, several departments share one compressor house, or the energy spend is large enough that ongoing compressed air monitoring matters. If your system is small and simple, we will say so; a leak gun and a notepad may solve the problem faster than an instrument would.

Where to Install a Compressed Air Flow Meter

Location decides whether a compressed air flow meter gives a trustworthy reading. Fit thermal mass meters downstream of the dryer: wet air condensing on the sensing element upsets the reading and, over time, the calibration. Respect the straight-run requirement for the chosen technology; most need a settled, undisturbed velocity profile clear of bends, tees and valves. On larger sites, consider metering branches as well as the main: a single meter on the compressor house gives the total bill, but branch meters let you localise leakage department by department, which is usually where the argument for fixing them gets made.

Frequently Asked Questions

How do you measure compressed air flow?

Fit a flow meter suited to a compressible gas, thermal mass, turbine, vortex or an insertion probe depending on pipe size and air quality, and read in standard volume (Nm3 or normal litres) rather than actual volume.

What is the best flow meter for compressed air?

There is no single best choice. Thermal mass suits dry mains and branch metering; turbine suits clean, dry air at stable conditions; vortex suits robust main-line duty above its low-flow cut-off; insertion probes suit large mains.

How much does a compressed air leak cost?

A single 3 mm hole at 7 bar is commonly cited as leaking around 11 litres per second, continuously, and industry figures put the resulting electricity cost at a four-figure sum per year at typical UK tariffs. Treat that as an order of magnitude, not a promise.

What is a thermal mass flow meter?

A meter that measures mass flow directly using a heated sensing element: moving air cools it in proportion to mass flow, and the power needed to hold its temperature gives the flow rate. It is sensitive to moisture and oil carry-over.

Should compressed air be measured in Nm3?

Yes, generally. Because air is compressible, a raw volumetric reading depends on pressure and temperature and means little on its own. Standard, or normal, volume, referenced to a fixed pressure and temperature, is the honest unit for comparing, billing or trending compressed air flow.

Getting the Measurement Right

Measuring compressed air is rarely about the meter itself; it is about turning an invisible cost into a number you can see and act on. If your compressor hours do not match your production hours, the gap is usually leakage, and a meter on the main will tell you within a week. If you would like help choosing and siting one, the Nixon team is happy to advise.
