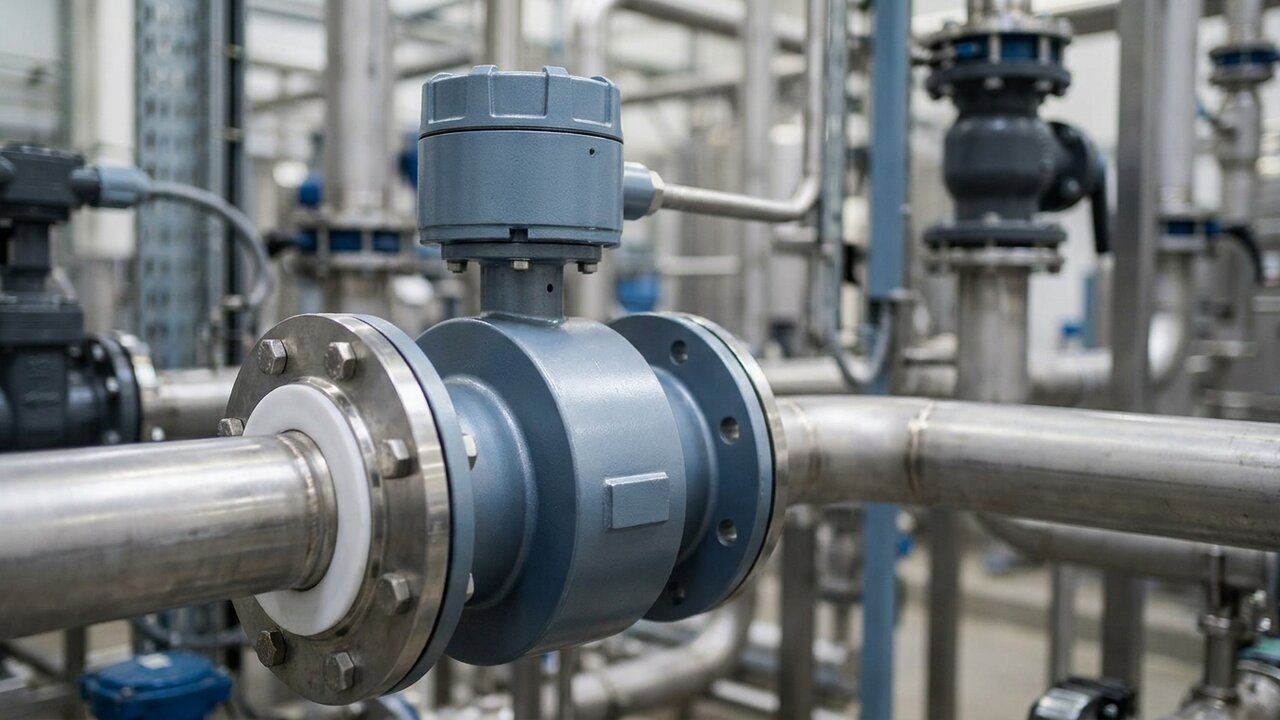

Chemical Flow Meter Selection: Compatibility, Dosing and ATEX

Every chemical flow application comes down to the same three questions, decided in a strict order. Will the meter survive the fluid? Can it actually measure the duty, which in chemical processing usually means a small, awkward flow rate rather than a comfortable mid-range one? And is it safe to install in the hazardous area the plant actually has, rather than the tidy one on the datasheet? Get the order wrong, specify against flow range before checking compatibility, say, and you can end up with a beautifully accurate meter quietly dissolving in a drum of concentrated acid.

Nixon Flowmeters has supplied flow meters into chemical processing, from agrochemical plants to specialty chemical manufacturers, since 1982, and we still see specifications built the wrong way round. This article works through the three gates in the order that matters: wetted material compatibility, the low-flow dosing duty that chemical work disproportionately involves, and the hazardous area classification of the plant itself. Get all three right and a chemical flow meter earns its keep for years. Get one wrong and it becomes an expensive lesson.

Gate One: Will the Meter Survive the Fluid?

Material compatibility is the first gate, and the one most often assumed rather than checked. The question is never simply whether 316L stainless steel resists sulphuric acid. It is whether it resists sulphuric acid at the concentration and temperature the plant actually runs. Dilute sulphuric acid cold sits comfortably within 316L's compatibility range; the same acid concentrated and hot will attack it within weeks. Flow meter chemical compatibility is a function of medium, concentration and temperature together, never any one of the three on its own, and it shifts as any of them shift.

For genuinely aggressive duties, chemical-sector flow meters lean on a different materials toolbox to water or general process meters: PTFE or PFA liners on magnetic meters, Hastelloy electrodes rather than stainless where the medium is particularly corrosive, ceramic linings for abrasive or highly reactive chemicals, and all-plastic bodies (PVDF, PP) for flow indication on the most aggressive acids and solvents where metal has no place at all.

None of this replaces checking the manufacturer's chemical compatibility tables against the specific concentration and operating temperature of the actual application. That includes anything you read here. We check the manufacturer's data before recommending a wetted material combination; a blog post, however careful, is not a substitute for that table.

Gate Two: Can It Measure the Duty You Actually Have?

Choosing a flow meter for acids and solvents starts with matching technology to conductivity and flow rate, not just chemical resistance. Chemical processing skews the measurement problem in a direction water and general industrial duties do not: flow rates are disproportionately low. Dosing an inhibitor, a coagulant, a pH-correction chemical or a specialty additive typically means litres per hour, sometimes less, not the cubic-metres-per-hour range most flow meter datasheets are built around. Specifying for the pipe size rather than the actual dosing rate is one of the commonest mistakes we see; our guide to low-flow meters and chemical dosing covers exactly why those specifications go wrong.

The honest chemical dosing flow meter shortlist looks like this. Electromagnetic (magnetic) flow meters remain the workhorse for conductive acids, alkalis and salt solutions, provided the liner and electrode material suit the medium; they measure well down into low flow ranges and have no moving parts for the fluid to attack. Variable area meters with all-plastic or PTFE-lined tubes are the simple, robust answer for dosing indication where a visual reading is enough and a digital output is not required. Oval gear, other positive displacement designs, and low-flow turbine meters suit non-conductive solvents that magnetic technology cannot see at all. Coriolis meters earn their higher cost where mass flow or concentration, rather than volume, is the variable that actually matters to the process.

Each is wrong somewhere. Magnetic cannot measure non-conductive solvents at all. Variable area gives no usable signal for automated control. Positive displacement and turbine designs wear on any duty carrying even light particulates, the same reason we steer chemical duties that carry solids, coagulant slurries in particular, towards the non-turbine thinking in our guide to flow meters for slurries. Coriolis is overkill and expensive where a simple volumetric reading would do. If you are weighing up the underlying technologies more broadly, our comparison guide to turbine, magnetic and ultrasonic meters sets them out side by side.

Turndown and Dosing Accuracy

Dosing pumps rarely deliver a smooth, steady stream. Diaphragm and piston dosing pumps pulse, and a flow meter that is genuinely accurate under steady-state conditions can still mislead badly on a pulsating dosing line, because the meter's averaging window and response time interact with the pulse frequency in ways a single-point accuracy figure never reveals. A meter reading correctly on average can still miss short bursts of over- or under-dosing that matter to the process.

Three things help. Electronic damping tuned to the pump's actual pulse frequency, rather than left at a generic default. Positive displacement meters, which measure discrete volumes rather than inferring flow from velocity, and are less troubled by pulsation. And siting the meter far enough downstream of the pump, sometimes behind a pulsation dampener, that the pulses have smoothed before the meter sees them. Ignore this and a specification that looks correct on paper under-doses or over-doses in practice.

Gate Three: Is It Safe Where It Is Going?

Hazardous area classification decides what the meter is allowed to be, not just how well it measures. Flammable solvents and reactive chemicals routinely put chemical plant into ATEX Zone 1 or Zone 2 areas: Zone 1 means an explosive atmosphere is likely to occur during normal operation, Zone 2 means it is only likely under abnormal conditions. That distinction changes what electrical apparatus, including an ATEX flow meter's transmitter, is permitted in the space.

Two broad protection approaches cover most instrumentation. Intrinsically safe (Ex i) designs limit the electrical energy in the circuit so it cannot provide an ignition source even under fault conditions, typically the choice for Zone 1. Flameproof (Ex d) enclosures instead contain any internal explosion so it cannot ignite the surrounding atmosphere. Which is right depends on the zone, the gas group and the specific installation, never on personal preference.

Aggressive media add a second safety layer beyond the electrical classification: secondary containment, bunding and leak detection around the meter itself, because a wetted-parts failure on a corrosive chemical is a spill, not just a lost reading. "We will fit the ATEX-rated version once the project settles down" is a sentence we hear more often than it should be, and it is exactly the sentence that fails a HAZOP review or an insurance audit later. Specify to the zone the plant actually has, from day one.

The Honest Cost of Getting It Right

Exotic wetted materials cost real money, and it is worth saying so plainly rather than burying it in a quotation. A Hastelloy-electrode, PTFE-lined flow meter can cost several times what an equivalent water-spec meter costs. That price difference buys a meter that survives the medium it is measuring. The alternative, a cheaper meter specified against the wrong compatibility assumption, buys a meter that fails within months and needs replacing, on a duty where a leak is itself a hazard. The cheap meter that dissolves in service is, on any honest accounting, the most expensive item on that line.

These were exactly the conversations we had on Stand F14 with Tecfluid at CHEMUK Expo 2026 back in May: engineers wanting a straight answer on wetted materials and hazardous area classification, not a sales pitch. Our post-show report covers what else came up on the stand.

Frequently Asked Questions

Which flow meter is best for chemicals?

There is no single best answer; it depends on the medium's conductivity, concentration, temperature and hazardous area classification. Magnetic flow meters with PTFE or PFA liners suit most conductive acids and alkalis, while non-conductive solvents need a different technology such as oval gear, positive displacement or Coriolis.

What flow meter materials resist acids?

PTFE and PFA liners, Hastelloy electrodes, ceramic linings and all-plastic bodies (PVDF, PP) are the common choices for aggressive chemical duties. Resistance always depends on the specific acid, its concentration and its operating temperature, so check the manufacturer's compatibility tables for the exact conditions rather than a general rule.

How do you measure chemical dosing flow?

Chemical dosing is usually a low flow rate, often litres per hour, delivered by a pulsing dosing pump. A magnetic flow meter sized correctly for the dosing rate, a variable area meter for visual indication, or a positive displacement meter where pulsation is severe, with damping tuned to the pump's pulse frequency, are the common choices.

Do flow meters need ATEX approval?

Any flow meter installed in a classified hazardous area, Zone 1 or Zone 2 under ATEX, needs a transmitter and any electrical parts rated for that zone, typically intrinsically safe or flameproof construction. Meters installed outside a classified area do not need ATEX approval.

Can magnetic flow meters handle acids?

Yes, provided the liner, commonly PTFE or PFA, and the electrode material, commonly Hastelloy for aggressive duties, are compatible with the specific acid at its actual concentration and temperature, and the fluid is conductive enough for magnetic measurement to work at all.

Getting the Specification Right First Time

None of these three gates, compatibility, measurement duty and hazardous area safety, is optional, and skipping one to save time at specification stage is how a chemical flow meter ends up as the most expensive line item in the maintenance budget rather than a fit-and-forget instrument. Chemical duties are where we insist on seeing the full picture: the medium, the concentration, the temperature and the zone, before we recommend anything. Send us those four facts and the Nixon team will give you a shortlist that will still be intact in five years.
